Nationwide Overhead Garage Door Repair Engineering
A residential or commercial sectional overhead garage door is the heaviest moving mechanical assembly in any modern structure. Operating under continuous spring tension exceeding 300 to 500 foot-pounds, an overhead door system integrates high-carbon steel torsion springs, 7x19 aircraft-grade lift cables, stamped galvanized steel hinges, precision vertical and horizontal radius tracks, and electric motor operators. When any single link in this kinetic chain fatigues or fractures, the entire assembly becomes severely compromised, immobilizing vehicles, posing dangerous falling-hazard risks, and leaving residential or commercial premises vulnerable to unauthorized entry.
Overhead Door Repair Pro was engineered to eliminate consumer vulnerability in the garage door service sector. For decades, home and commercial property owners facing jammed overhead doors have been subjected to predatory $29 to $49 service call bait-and-switch schemes, where unskilled technicians arrive only to demand thousands of dollars in surprise hardware replacement fees. Our network operates under a zero-compromise charter: 100% upfront transparent flat rates, DASMA-certified mechanical procedures, commercial-grade ASTM A229 oil-tempered hardware, and comprehensive multi-point safety testing on every dispatch.
5 Critical Overhead Door Systems We Repair Daily
Our fleet of specialized mobile workshops carries extensive inventories covering every standard residential profile (8x7, 9x7, 16x7, 18x8) and commercial overhead bay configuration (10x10, 12x12, 14x14). We complete repairs on the initial visit in over 98% of dispatches.
1. Overhead Counterbalance Springs (Torsion & Extension)

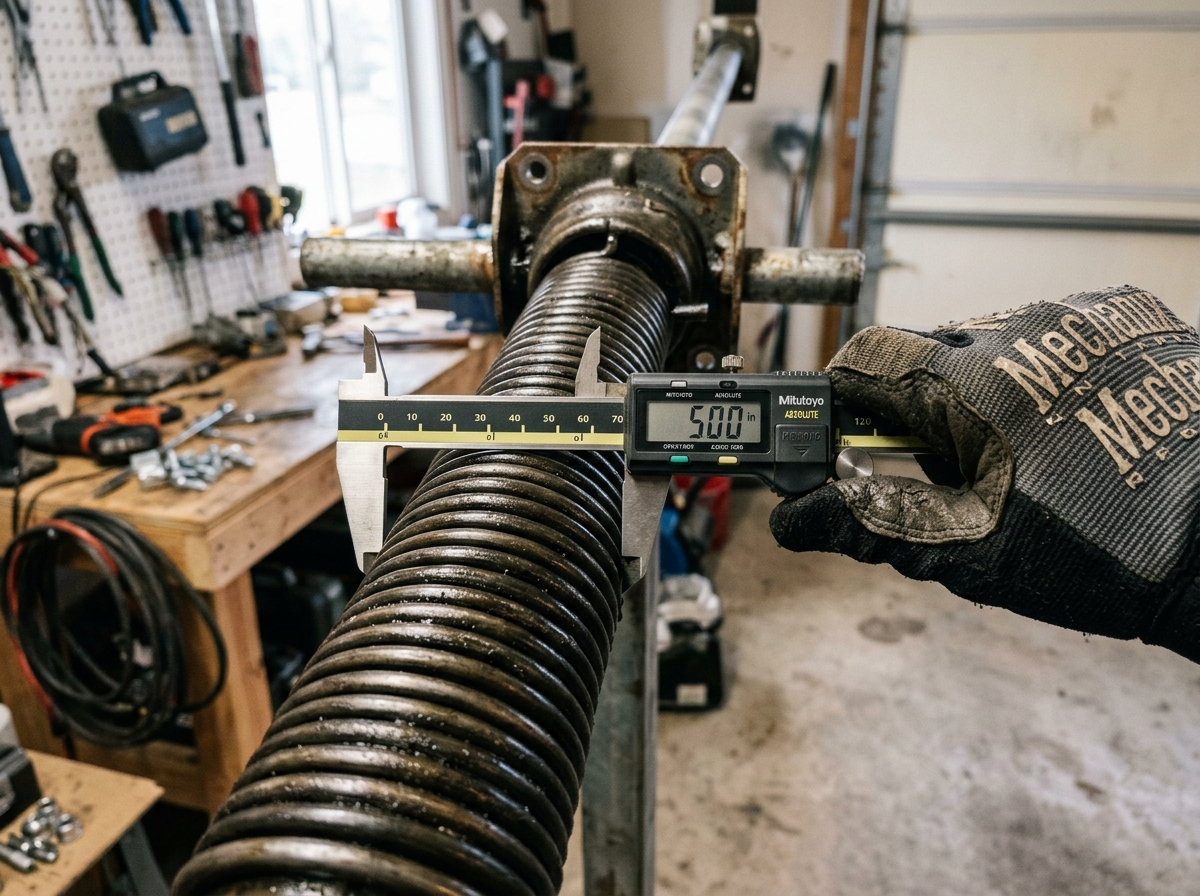

Contrary to common perception, electric garage door openers do not lift the 150 to 400+ pound weight of an overhead sectional door; the counterbalance springs do. Torsion springs mounted on a tubular shaft above the header wind tightly as the door closes, storing rotational kinetic energy that effortlessly floats the door upward during operation. When a spring snaps with a loud gunshot-like fracture, the door becomes an immovable deadweight. We install premium ASTM A229 oil-tempered coils engineered for 25,000 to 50,000 cycles—lasting over three times longer than builder-grade 10,000-cycle springs.
2. Vertical & Horizontal Track Realignment & Re-Anchoring
Overhead sectional doors glide along heavy-gauge galvanized steel tracks fastened to wall framing and ceiling joists. Over years of cyclic vibration or accidental vehicular bumper bumps, track anchor brackets loosen, causing vertical tracks to lose plumb. When track spacing deviates by as little as 1/4 inch, roller wheels bind, screech, or pop entirely out of the radius curve, leaving the door hanging precariously by a single roller. Our technicians mechanically square, level, and anchor tracks using structural lag bolts, restoring mirror-plumb geometry.
Consumer Alert: The Danger of Attempting DIY Off-Track Repairs
If your overhead door has popped off its track, never pull the red emergency release cord or tamper with bottom roller brackets. The bottom brackets remain under extreme mechanical tension from the counterbalance cables. Cutting or unscrewing this hardware without securing the torsion shaft can result in severe blunt-force injury. Always disconnect power to the opener and summon a certified overhead door professional.

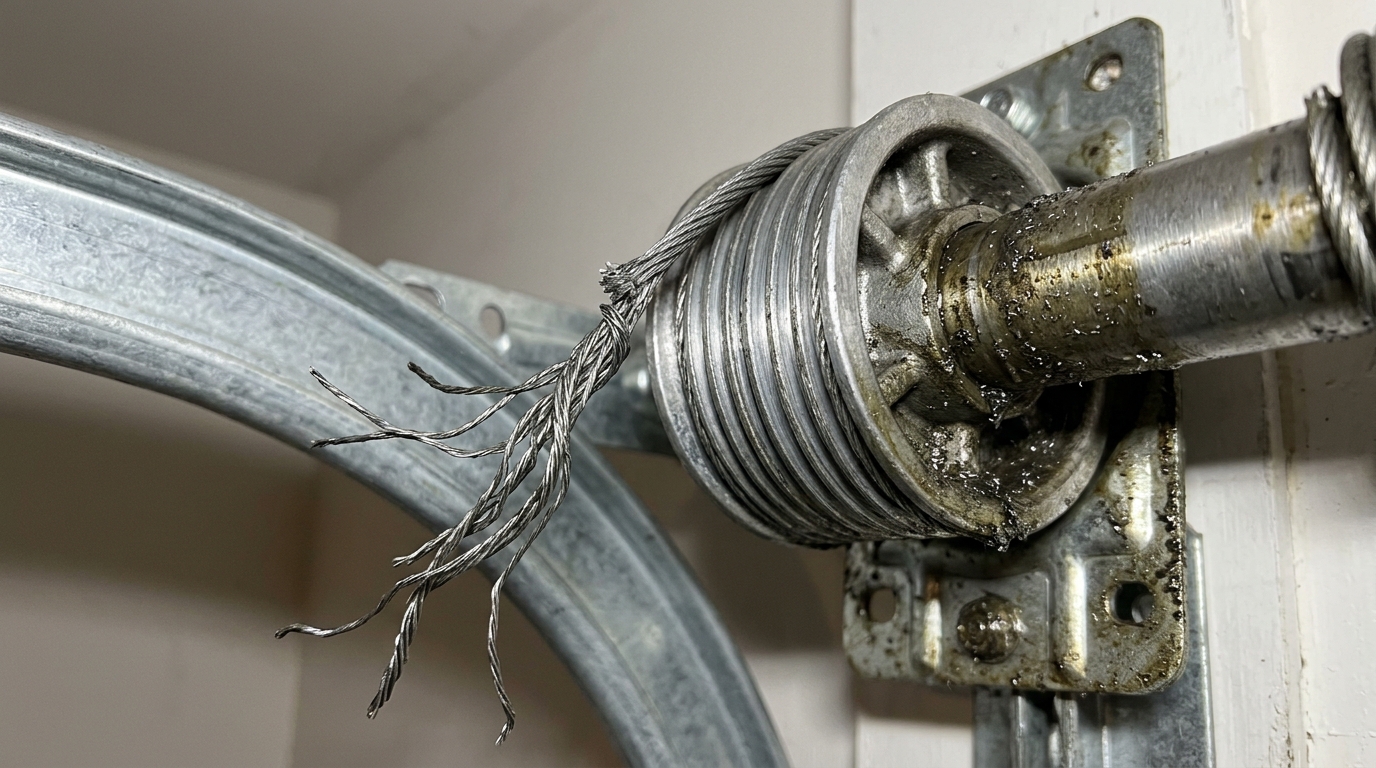

3. Snapped & Frayed Aircraft Lift Cables
Overhead door cables are spun from flexible 7x19 galvanized or stainless aircraft steel, rated to support 1,500 to 2,000 pounds of tensile load. However, repeated exposure to coastal moisture, lack of lubrication, or rubbing against misaligned track bolts causes individual wire strands to fray and snap. When one cable snaps, the door tilts at a severe angle, wedging panels tight inside the track guides. We replace cables in matched pairs, re-timing the cast aluminum cable drums to ensure equal tension on both sides.
4. Sectional Steel & Insulated Panel Replacement
Whether caused by backing into the garage before the door has fully opened or structural wind damage during coastal storms, damaged sectional panels impair both curb appeal and structural integrity. A buckled bottom or intermediate panel prevents the door from bending through the track radius, causing motor stall. We source matching replacement panels across major manufacturers—including Clopay, Amarr, Wayne Dalton, CHI, and Overhead Door Corporation—or reinforce slightly warped sections with commercial 14-gauge steel U-bars.
5. Electric Openers & Commercial Jackshaft Operators
Modern automated overhead doors rely on whisper-drive belt openers, heavy-duty chain drives, or commercial wall-mount jackshaft operators. We repair and replace stripped nylon drive gears, blown logic circuit boards, failing start capacitors, noisy motor assemblies, and misaligned UL 325 safety photo-eyes. Furthermore, all our installations comply with local mandates—including California Senate Bill 969 battery backup requirements and Florida HVHZ wind-load codes.
The 3-Point Neutral Balance Float Test

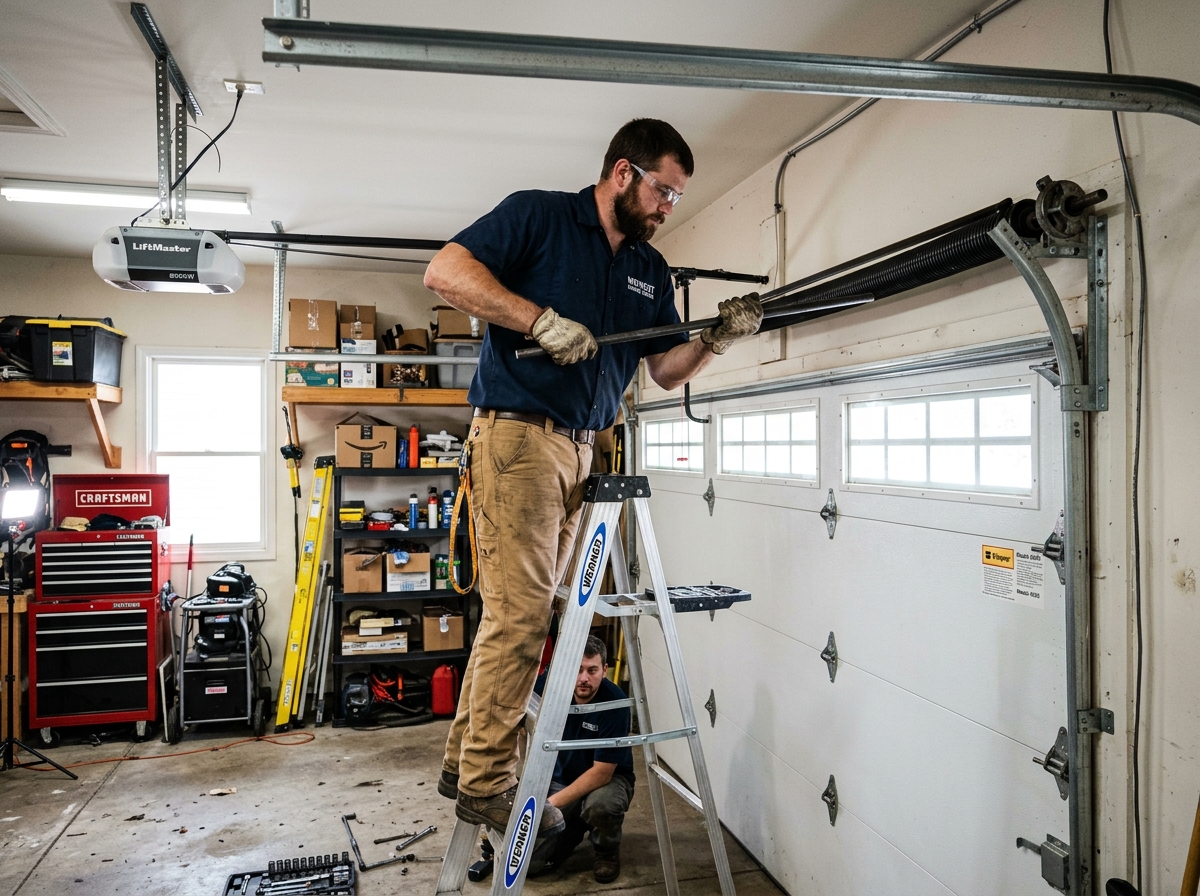

How do you know if an overhead door is properly balanced? Disengage the opener and lift the door manually. A properly engineered counterbalance allows the door to rest unsupported at three distinct elevations: 6 inches off the floor, halfway open (waist height), and fully open. If the door drifts down, the spring tension is deficient; if it flies open uncontrollably, the springs are over-torqued. Our technicians adjust wire winding to achieve perfect neutral flotation.
Transparent Overhead Door Pricing Matrix
We believe in upfront, transparent pricing without hidden dispatch fees or surprise surcharges. Below is our standardized service schedule across all nationwide dispatch zones:
| Service Item | Standard Rates | What is Included | Warranty |
|---|---|---|---|
| Multi-Point Inspection & Diagnostic | $0 with Repair | 25-point safety check, track plumb, cable tension, opener force limits | Written Report |
| Overhead Track Realignment & Re-Anchoring | $149 – $265 | Track straightening, bracket tightening, jamb anchoring & roller seating | 1-Year Labor |
| Aircraft Cable Replacement (Matched Pair) | $165 – $285 | 7x19 high-flex galvanized cables, drum re-timing & tension balancing | 5-Year Hardware |
| Dual High-Cycle Torsion Counterbalance | $249 – $385 | ASTM A229 oil-tempered matched pair, center bearing, DASMA torque winding | Lifetime Warranty |
| Ultra-Quiet 13-Ball Nylon Roller Overhaul | $185 – $295 | Full 10–12 roller replacement with sealed ball bearings & hinge tune | Lifetime Warranty |
| Opener Repair (Gears, Logic Board, Sensors) | $175 – $350 | Drive gear overhaul, capacitor test, limit switch adjustment, photo-eye realign | 2-Year Warranty |
